Drip Line

Specification:

• Sizes (mm): 12, 16, 17, 18, 19, 20, 23, 25.
• Emitter Spacings (cm): 15, 20, 30, 40, 50, 60, 75, 90, 100, 120, 150.
• Nominal Discharges (lph): 0.8, 1.2, 1.6, 2.0, 4.0

Applications:

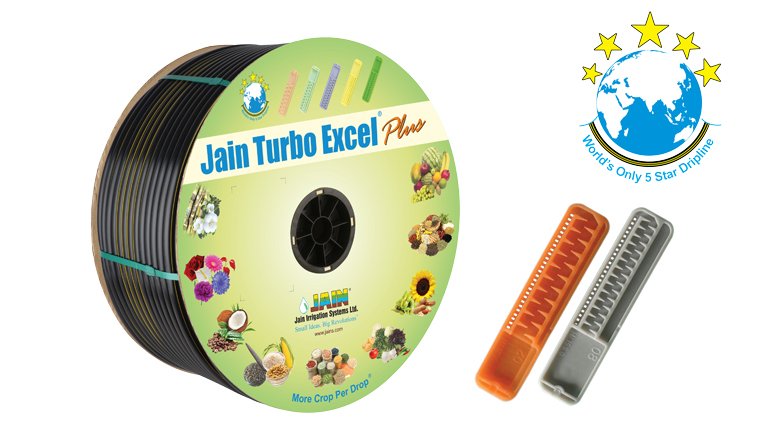

• Jain Turbo Excel® Plus is recommended for irrigation of closely spaced row crops like sugarcane, cotton, banana, strawberry, vegetables, spices, biofuel crops, floriculture, etc.
• Recommended to use in greenhouses and nurseries.
• Suitable for landscape, shrubs and turf irrigation.
• Used for widely spaced horticultural plants like mango, citrus, guava, apple etc. in group spacings.
• Suitable for multi–seasonal applications.
• Suitable for surface as well as sub surface installations.

Specification:

• Sizes (mm): 12, 16, 17, 18, 20, 22, 23, 25
• Emitter Spacings (cm): 15, 20, 30, 40, 50, 60, 75, 90, 100
• Nominal Discharges (lph): 1.1, 1.6, 2.0, 2.2, 3.8
• Pressure Compensating Range: PC AND PCAS model - 0.4-4.0 kg/cm² (5.7-56 psi)

Applications:

• All purpose versatile product. Suitable for undulating and hilly terrain.
• Recommended for Greenhouse application.
• Open field application to maintain high field application efficiency.
• PCAS is recommended for subsurface application to prevent soil suction.
• Irrigation of large fields & long rows.
• Low operating pressure/ Gravity feed irrigation system.

Specification:

• Sizes (mm): 12, 16, 20
• Emitter Spacings (cm): 20, 30, 40, 50, 60, 75, 90, 100
• Nominal Discharges (lph): 12 mm: - 2.3, 4.0
  16mm - 1.1, 2.2, 4.0, 8.0
  20mm - 2.2, 4.0

Applications:

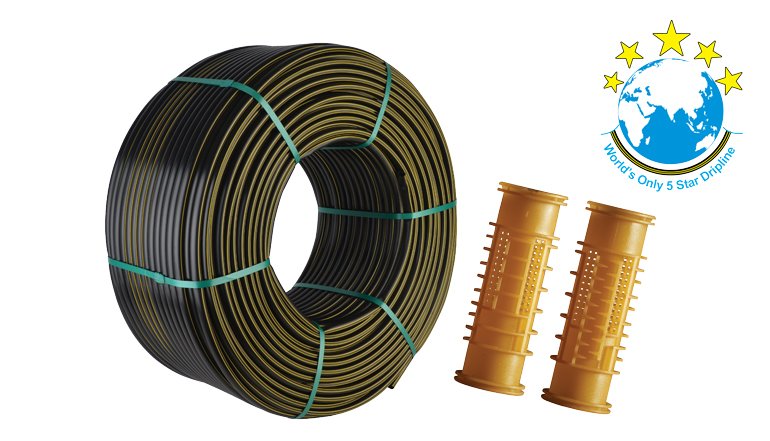

• J-Turbo Line Super is recommended for irrigation of closely spaced row crops like sugarcane, cotton, banana, strawberry, vegetables, spices, biofuel crops, floriculture, etc.
• Recommended to use in greenhouses and nurseries.
• Suitable for landscape, shrubs and turf irrigation.
• Used for widely spaced horticultural plants like mango, citrus, guava, apple etc. in group spacings.
• Suitable for multi-seasonal applications.
• Suitable for surface as well as sub surface installations.
• With its fine filter, large filtration area and clog resistant Cascade labyrinth, J-Turbo Line® Super is a perfect product for Mining Applications.

Specification:

• Sizes (mm): 16, 20
• Emitter Spacings (cm): 15, 20, 30, 40, 50, 60, 75, 90, 100
• Nominal Discharges (lph): 16mm - 1.4, 1.6, 2.3, 4.0
  20mm - 0.9, 1.6, 2.3, 4.3
• Pressure Compensating Range: 0.8 to 4 kg/cm² (7 to 71 psi)

Applications:

• Ideal for irrigation of closely spaced row crops like sugarcane, cotton, banana, strawberry, floriculture, vegetables and spices.
• Suitable for surface as well as sub–surface irrigation.
• Recommended for undulating terrain & steep slopes and where longer lateral running length is necessary.
• Open field application to maintain high field application efficiency.
• Suitable for low operating pressure/ Gravity feed irrigation system.

Specification:

• Sizes (mm): 16, 17, 18, 20, 22, 23, 25
• Emitter Spacings (cm): 15, 20, 30, 40, 50, 60, 75, 90, 100, 120, 150
• Nominal Discharges (lph): 1.1, 1.6, 2.0, 2.2, 3.8, 8.0
• Pressure Compensating Range: PC AND PCAS model-0.5-4.0 kg/cm² (7.11-56.88 psi)
  PCNL model-1.0-4.0 kg/cm² (14.22-56.88psi)
• Opening and Closing Pressure for PCNL Model: Opening pressure - 1.0 kg/cm² (14.22 psi)
  Closing pressure - 0.25 kg/cm² (2.56 psi)

Applications:

• All purpose versatile product. Suitable for undulating areas.
• Open field application to maintain high field application efficiency.
• PCNL option allows all the drippers to open at a time. Hence it is specially recommended for pulse irrigation for greenhouse/nurseries especially for soilless substrate application.
• PCNL option reduces filling time, saves water and electricity needed to fill up large pipe volume.
• PCAS is recommended for subsurface application to prevent soil suction.
• Large fields with long rows.

Specification:

• Sizes (mm):Standard sizes
  Thick wall - 16 & 20 mm nominal diameter.
  Thin wall - 16 & 22 mm nominal diameter.
• Emitter Spacings (cm): 15, 20, 30, 40, 45, 50, 60, 75, 90, 100, 120, 150
• Nominal Discharges (lph): 1.1, 1.6, 2.0, 2.2, 3.8

Applications:

• All purpose versatile product. Suitable for undulating areas.
• Open field application to maintain high field application efficiency.
• PCNL option allows all the drippers to open at a time. Hence it is specially recommended for pulse irrigation for greenhouse/nurseries especially for soilless substrate application. PCNL also works as Anti Siphon.
• PCNL option reduces filling time, saves water and electricity needed to fill up large pipe volume. By virtue of its design it also works as Anti Siphon and hence can also be used for subsurface application.
• PCAS is recommended for subsurface application to prevent soil suction.
• Sutaible for large fields with long rows.

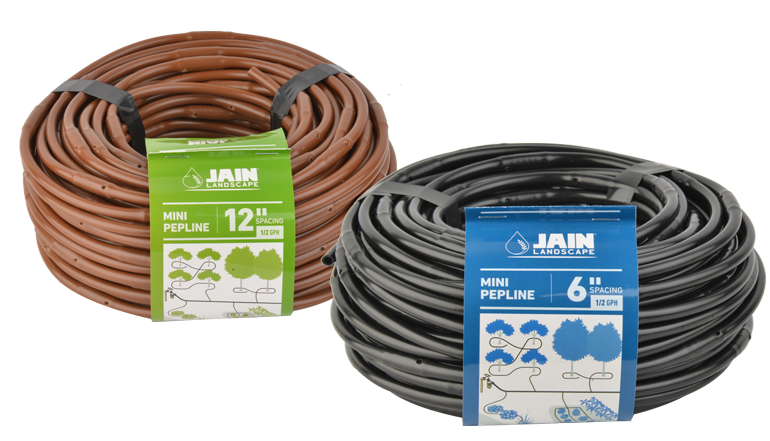

Specification:

• Sizes (mm): 6
• Emitter Spacings (cm): 15, 30
• Nominal Discharges (lph): 2.3, 4.0

Applications:

• Landscape
• Ground cover
• Trees and shrubs in landscape
• Home /Terrace garden
• Nurseries
• Vertical garden / Green Wall Kitchen
• Vegetable gardens
